Description

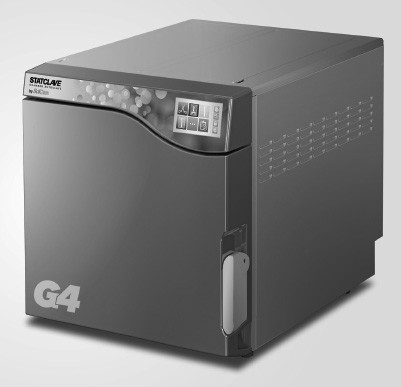

SciCan STATCLAVE is a Class B vacuum sterilizer that incorporates both pre-sterilization vacuumto improve steam penetration and post-sterilization vacuum to improve drying. Its 11” chamber and vacuum-assisted closed-door drying efficiently delivers sterilized and dried wrapped instruments.

Fast

SciCan STATCLAVE can efficiently sterilize and dry wrapped instrument loads in as little as 38 minutes.*

干燥

Closed-door drying and vacuum technology results in perfectly dried instruments every time.

Capacity

SciCan STATCLAVE’s 11” chamber can sterilize up to 4 full-size cassettes and 4 exam cassettes or up to 20 pouches with included pouch racks.

G4技术

SCICAN的G4设备可以将信息连接和发送到智能设备，以便您的指尖可以具有循环数据，说明和维护通知。

Gentle

Fresh water is used in every cycle, reducing the buildup of oils and debris.

Versatile

SciCan STATCLAVE offers a number of filling & draining options, including easily accessible and cleanable top reservoirs, front manual fill and a rear automatic fill option that can be connected to the

*基于用3.5磅（1.59千克）负载的测试结果。自动灌装凹版水过滤系统

Cycle Times and Maximum Load Weights

• Cycle / Temperature / Time / Total Cycle Times (120V)* / Maximum Load Weight
• Solid Unwrapped / 270°F (132ºC) / 4 mins / 18 mins / 13.2 lbs (6 kg)
• Solid Wrapped / 270°F (132ºC) / 4 mins / 44 mins / 13.2 lbs (6 kg)
• Hollow Unwrapped / 270°F (132ºC) / 4 mins / 23 mins / 13.2 lbs (6 kg)
• Hollow Wrapped / 270°F (132ºC) / 4 mins / 50 mins / 13.2 lbs (6 kg)
• Textiles or Porous / 270°F (132ºC) / 4 mins / 49 mins / 4.4 lbs (2 kg)
• Rubber & Plastic Unwrapped / 250°F (121ºC) / 20 mins / 36 mins 4.4 lbs (2 kg)

Unit Specifications

• 单位尺寸（l x w x h）†：25“x 17.75”x 19.5“（635 x 450 x 495mm）
• Volume:6.87 gal (26 L)
• 室尺寸（D X L）：11” diameter, 15” depth (297 x 381mm)
• Weight:135.8磅（61.6千克）（无水和包装）
• Voltage:120V, 60Hz, 12A

推荐的配件

Vistapure™

水过滤
为高压釜，牙科瓶，超声波清洁剂和仪器垫圈的冲洗循环提供两种高品质的水。

V3000

lifeHub™

Multi-port Drain Adapter
The patent-pending device accepts up to eight drain connections in one small hub; saving space, cost, and time.

DH154 DrainHub 4 Hole
DH158 DrainHub 8 Hole
